DDT215
Motion Detectors
PIR Intruder Detector
- Advanced anti-cloak technology to recognize the intruder with cloak
- Digital pulse adjustable,automatic temperature compensation,energy analysis
- Dual infrared FRESNEL lens,with downward vision window avoid detecting dead angle
- Advanced pet-immunity recognition technology can distinguish the different signal between intruder and pet
- Advanced digit filter circuit,with strong anti-jamming function.
- Multiple shielding technology for resisting all kinds of high frequency interference
- With tamper switch,hence with reliable function
- Small and elegant,with low price and high quality,especially suitable for home,residence community
Description:

Model |
DDT215 |
DDT215DMT |
Sensor |
Low-Noise high sensitivity Dual Pyroelectric Infrared Sensor |
|
Detection distance |
12m@25°C |
|

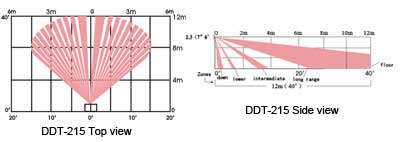

Detection angle |
110° |
|
Infrared area |
9+8+7+2=26 |
|
Pet-immunity |
No |
25kg |
Working voltage |
9~16VDC |
|
Working current |
8mA~25mA(about 15mA@12VDC) |
|
Installation |
1.8m~2.4m(surface mount) |
|
Working temperature |
-10°C~+50°C |
|
Anti-white light |
>9000LUX |
|
Anti EMI |
>20V/m (20MHz~1GHz) |
|
Dimension |
87mm×62mm×40mm |
