Infrared & MW complex intrusion detector
- Adopts energy-saving logic processing(DMF),random dynamic time segmentation(DMT) technology
- Syncretize MW & PIR technology,double processors improve signal processing ability
- K-Band detecting technology to further prevent false alarm,improve detection sensitivity
- the uniformity consistent sensitivity of optical system,can solve the error of "near big","far small"
- Digital pulse adjustable,automatic temperature compensation,energy analysis
- Self adaptation microwave system,avoid causing the false alarm by action of electric fan
- Dual infrared FRESNEL lens,with downward vision window avoid detecting dead angle.
- With tamper alarm,timing self-check make sure the detector works properly.
- Advanced pet-immunity recognition technology can distinguish the different signal between intruder and pet
- Advanced anti-cloak technology to recognize the intruder with cloak

Model |
DDT7425 |
DDT7425DMF |
DDT7425DMT |
Detection mode |
Dual PIR& MW complex |
||

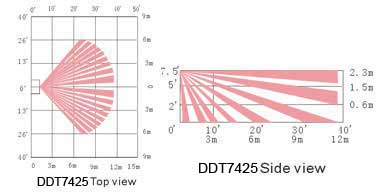

Detection range |
Diameter 12m@25°C |
||
Detection angle |
110° |
||
Infrared area |
22+12+6+4=44 |
||
MW frequency |
10.525GHz |
||
Installation |
Height:1.8m~2.4m(surface or corner mount) |
||
Working voltage |
9~16VDC |
||
Working current |
8mA~25mA(about 20mA@12VDC) |
||
Working temperature |
temperature:-10°C~+50°C;relative humidity:5%~95%RH |
||
Anti EMI |
>9000LUX |
||
Anti-white light |
>20V/M (20MHz~1000MHz) |
||
Pet-immunity |
No |
25kg |
25kg |
Intelligence mode |
No |
DMF |
DMT |
alarm output | solid relay; NC |
