DDT-110
Motion Detectors

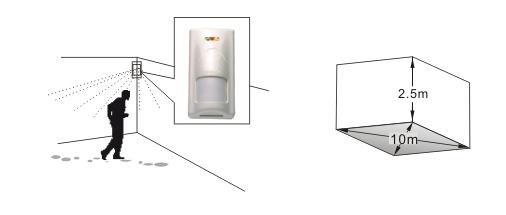

- The Dual Technology (Infrared and Microwave) Motion Detectors has the Features as Intelligent Control, Microprocessor, Top View and Elegant Design which are Specially Suitable For Luxurious Residence and Commercial Environments.
- By using Infrared and Microwave Simultaneously, and adopting Microprocessor for Digital Signal Processing, Temperature Compensation, Anti-electromagnetic Technology, and Special Pigmented Lenses for Stronger Resistibility to White Light, the False Alarm problem has basically been Settled.
Description:
Main Features
Specification
- Dual PIR and MW Technology
- Microprocessor Design
- True Temperature Compensation
- Microwave Range is Adjustable
- Dual Polarity Pulse Count is Adjustable
- Resist Interference of white Light
- Top View Window and Creep Zone
- Power Consumption is Low
- High RFI Immunity for False Alarm Prevention(30V/m- 1GHz)
- Professional Optical Pigmented Lenses
- RA93 Swivel Brackets is Available
- Resist Fluorescent Interference
- Memory and Form-C Relay
Specification
- Operating Voltage:9-16VDC
- Current:25mA
- Contacts of Alarm:NC,12VDC,50mA max
- Contacts of Tamper:NC,12VDC,100mA max
- Time to Alarm:2.2s
- Time to Warm-up:2 minutes
- RFI characteristic:30V/m at 10Mhz to 1Ghz
- Operating Temperature:-0°C to 55°C
- Storage Temperature:-20°C to 60°C
- Size:128*64*40mm
