DDT7380
Motion Detectors
Ceiling mounting complex Infrared and MW intrusion detector
- Adopts energy-saving logic processing DMF,DMT technology
- Adopts dual infrared sensor and plane antenna microwave transmitter/receiver
- Dual curtain style Fresnel lens,fit for ceiling mount
- With novelty design,smooth lins,dynamic LED display
- Adopts refined Fresnel lens technology,improve energy receiving efficiency
- Adopts quadruplicity shielding technology,can control the detection area effectively,with high sensitivity
- Digital two-way automatic temperature compensation,super resistance to false alarm
- Advanced pet-immunity recognition technology can distinguish the different signal between intruder and pet
- Advanced anti-cloak technology to recognize the intruder with cloak
Description:

Model | DDT7380 | DDT7380DMF | DDT7380DMT |
Detection | Dual PIR & MW complex | ||

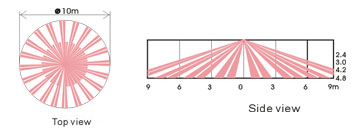

Detection range | diameter 10m@25°C | ||
Detection angle | 110° | ||
Installation mode | ceiling mount | ||
MW frequency | 10.525GHz | ||
Installation height | 2.4m~4.8m install 10m diameter area | ||
Working temperature | temperature:-10°C~+50°C; relative humidity:5%~95%RH | ||
Anti EMI | >9000LUX | ||
Anti-white light | >30V/M (10MHz~1000MHz) | ||
Pet-immunity | No | 25kg | 25kg |
Anti-cloak | No | Yes | Yes |
Alarm output | Solid relay, NC | ||
Dimension | Φ110*40mm |
